What is metal roofing overlap and why is it important?

Metal roofing is durable and strong, which is why it is often chosen for the roofing of residential, industrial, and commercial buildings. However, to ensure the structure reliably protects the house, it is important to follow the installation technology, specifically by securing the material overlapping. Specialists from Roofing & Siding in Cape Cod share useful information about what you need to know when sheathing a roof with metal.

Why is it important to overlap metal roofing?

Metal sheets or panels are used for roofing work. They are laid on top of each other overlapping, and this ensures:

Waterproofing. Overlapping roofing elements prevents moisture from penetrating the spaces between the panels. Water drains off the roof, doesn’t accumulate in the seams, doesn’t promote mold development, and doesn’t cause roof leaks.
Protection from wind damage. During strong gusts, air flows can lift and tear off poorly secured sheets. When installed with overlap, this won’t happen.
Structural integrity of the roof. The stability of the structure when laying panels edge to edge can be compromised due to thermal expansions that can cause roofing deformations.

The specifics of properly overlapping a metal roof depend on the type of material. Next, we’ll look at the options.

Corrugated metal roofing

This material has pronounced indentations and protrusions, so it is important to ensure effective sealing and prevent water penetration. To do this, when overlapping corrugated roofing, it is necessary to act sequentially.

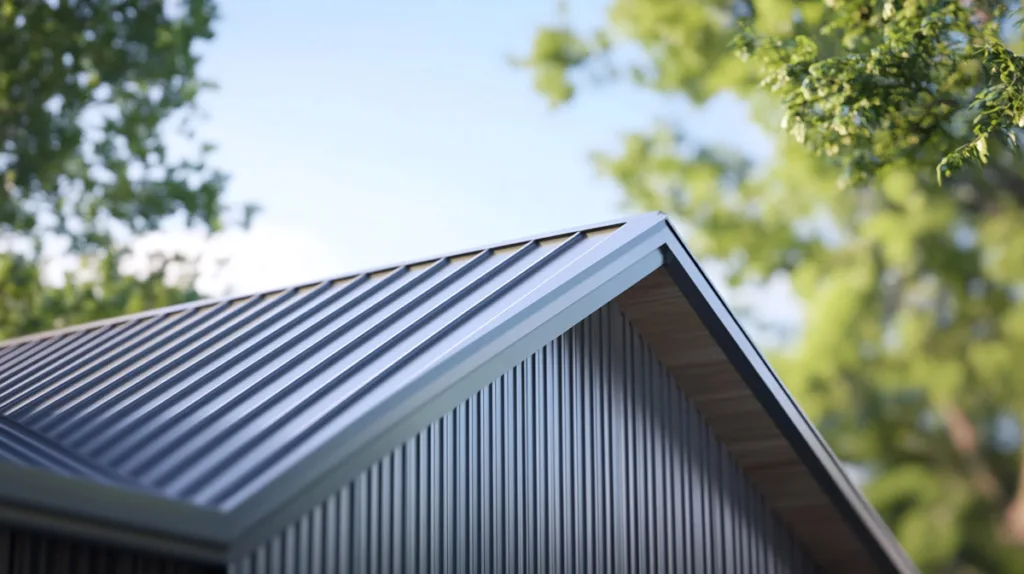

Standing seam roofing

These panels are joined together by standing seam joints. They have locking mechanisms, so large overlaps are not required. However, it is important to maintain precision.

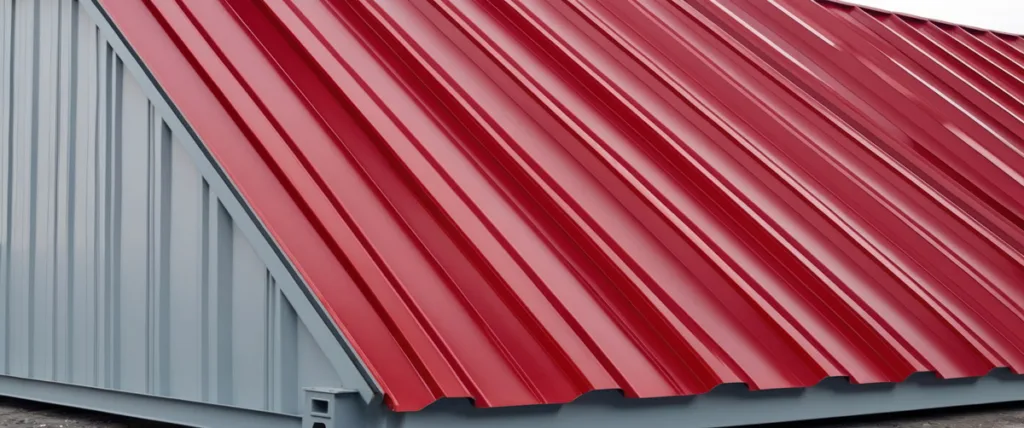

R-Panel roofing

This option is suitable for commercial and residential buildings, for roofs with deep ribs for rigidity. To ensure the structure is watertight, correct longitudinal and lateral overlapping must be performed.

6 tips for overlapping metal roofing

To ensure waterproofing and the reliability of the structure, it’s better to entrust the roof installation to professionals. The technology and sequence of the process depend on the roofing material and the type of building, but there are several general recommendations.

Align the panels in the correct direction

Installation is done from bottom to top. The panels are laid overlapping so that water drains away from the seams. Before securing, make sure each sheet is laid flat. Misalignment can lead to gaps through which water can seep.

Follow the manufacturer’s recommendations

The overlap sizes may vary for panels from different manufacturers. Therefore, follow the recommendations provided by the manufacturer. Adhering to them will ensure the structural integrity and uniformity of the roof.

Seal everything with sealant and fasteners

Applying sealant to the overlap areas prevents moisture from entering the seams. To avoid leaks, fasteners should be placed not in the depressions but on the ridges. Also, the gaps between the fasteners should be maintained. If the distances are too wide, strong winds may lift and even tear off the panels.

Be consistent

Metal sheets should overlap by the same amount. This way, the entire structure will look neat and uniform, without gaps. Uneven, inconsistent overlaps will create vulnerable spots, which will reduce the roof’s lifespan and increase the risk of damage.

Consider expansion and contraction

Metal expands and contracts with temperature changes. However, the correct overlap allows for slight flexibility, preventing warping and deformation due to temperature fluctuations.

Use the right tools

Specialized tools are required for working with metal roofing. These include metal shears, self-tapping screws for fastening, and a sealing roller for ensuring a tighter fit of the sheets.

How to overlap metal roofing along the length

This method is used when it’s necessary to increase the standard length of the panels, which is relevant for large roof areas where a single sheet is not enough to cover the slope.

The minimum overlap suitable for regions with low rainfall is 6 inches. In areas with frequent rain, snow, and gusty winds, the overlap should be larger – 8-12 inches. The installation should be done in the direction of the most common winds. This helps avoid wind blowing into the seams and water entering them.

Rules for lengthwise installation:

Ensure the seam offset to avoid weak spots in the structure.
Use appropriate fasteners, such as self-tapping screws or rivets, to secure the overlaps.
To prevent leaks, apply waterproof sealant between the panels.
Avoid excessive overlap, as it can weigh down the structure and lead to material wastage.

How to overlap corrugated metal roofing

The corrugated metal roofing system is durable, reliable, and attractive. It consists of high-strength corrugated metal sheets with alternating depressions and protrusions. This design introduces some installation challenges. Below, we will review a step-by-step guide for installation.

Step 1: Measure the roof

Measure the roof. Find out the length and width, then multiply them to determine the suitable size of the corrugated sheets. Each panel overlaps the previous one by 4 inches, so make sure to account for this extra.

Step 2: Purchase corrugated panels

After measuring the roof, purchase the material. Typically, ready-made sheets range from 3 feet to 12 feet in length. You can buy whole panels and cut them if you have the proper tools.

Step 3: Install roofing felt

For reliable building insulation, lay down the roofing felt. Cut it into pieces of the required size and place it on the roof horizontally, ensuring it fits snugly against the plywood decking of the structure. Secure the sections with roofing staples, maintaining a 4-inch overlap.

Step 4: Overlap the panels

Place the first corrugated metal sheet on the lower corner of the roof on top of the felt. Lay several rows horizontally, overlapping each panel by 4 inches. Also, ensure that the first sheet hangs 4 inches over the edge. After installing all the panels, secure them to the plywood with 8-inch screws.

Step 5: Install the second corrugation

Cover the first corrugation with the second one, overlapping by 4 inches (this is crucial for the roof’s weather resistance). Overlap the edge of the sheet and secure the lower part with a self-tapping screw. Lay the material across the entire roof.
If you need to shorten the last panels in the rows, it is best to use metal shears or a saw for this. Using an angle grinder is acceptable only if you have the proper skills and follow safety procedures.

Step 6: Seal the seams of the panels

Fill all open seams between the sheets with special roofing cement or a suitable sealant. After the product dries (usually after about 12 hours), finish the process.

Mistakes to avoid

Let’s look at common mistakes that can negatively affect the waterproofing, integrity, reliability, and durability of the roof:

Doing the work yourself without the proper knowledge and skills. It’s better to hire professional roofers.
Ignoring overlaps. Overlaps are necessary to improve the roof’s water resistance and protect it from weather conditions.
Violating the recommended overlap size. If it is insufficient, moisture can penetrate the gaps. The risk of structural damage from strong winds also increases.
Incorrect fastening. If the panels are poorly secured, they may be torn off by the wind during the first hurricane. However, don’t over-tighten the screws either: doing so will deform or damage the metal, compromising the roof’s integrity.

What is the width of metal roofing after overlap?

The actual width of the sheets is reduced during installation due to the overlap. The values vary depending on the type of corrugated metal panels and affect the material volume calculation. Here are some examples in the table:

Sheet Type	Initial Width (inches)	Actual Width after Installation (inches)
Corrugated Metal	26	23-24
Standard 36-inch Sheets	36	32-34
R-Panels	36	33-34
Standing Seam Sheets	16	14-15

Best practices for overlapping metal roofing

The roof is the protection of the house from bad weather and other external factors. To ensure it performs its function, follow these recommendations:

Check the correct placement of fasteners. They should be evenly distributed along the ridge to prevent gaps and deformations due to winds.
Use high-quality sealant. It will protect the overlap areas from moisture and increase the overall lifespan of the structure.
Consider the roof slope. If it is steep, increase the overlap to reduce the risk of water penetration.
Do not use panels of different types together. Each specific type has its own overlap rules. Mixing materials will result in uneven seams and leaks.
Sign a contract with an experienced contractor. The work should be done by professionals who know and follow the overlap technique without making mistakes.

Conclusion

To ensure the roof is durable, it is important to follow installation rules and make proper overlaps. This is known by the specialists at Roofing & Siding in Cape Cod, who will complete the installation efficiently, quickly, and at an affordable price.
